Alabama's Best Custom Built Tube Utility Trailers!!


`www.Pounders-Trailer-Sales.com

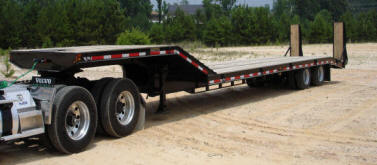

35 ton Low Boy







OPTIONS

  • Floor braces formed gussets each $20

  • Outriggers-per sq ft of outriggered length $35

  • 25K AXLES $250

  • 22.5 K EXTRA Axels $3750

  • Fabricated beam $1500

  • 8" hydraulic ramps $2,000

  • 11' BI-FOLD hydraulic ramps $3000

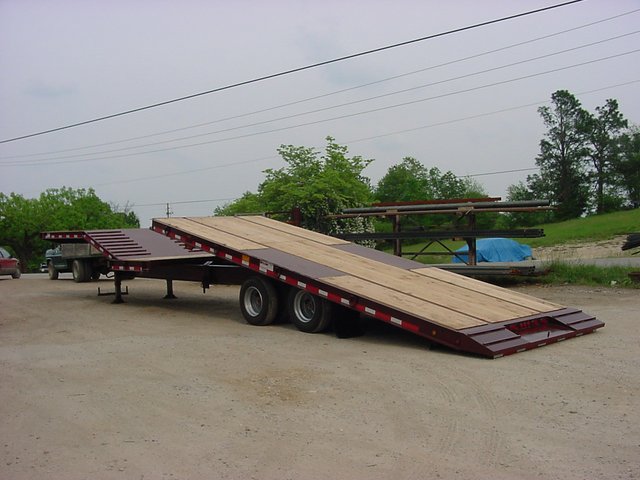

  • Tilt options 24' minimum $2,000

  • Air ride options per axel $1750

  • Lift on one axel (manual dump) $500



Pricing Specifications
  • 44' low boy
  • dove tail 5' wood
  • Deck length flat 28'
  • Tongue on step deck 10' w/ traction cleat on incline
  • Standard is wood
  • Main frame 16 at 40# per foot WF beam
  • cross members 6' ibeam at 12# per foot WF beam
  • Side rails 12" channel with 5 d-rings per side
  • Flooring 2" oak
  • Jacks, 2speed lower gear

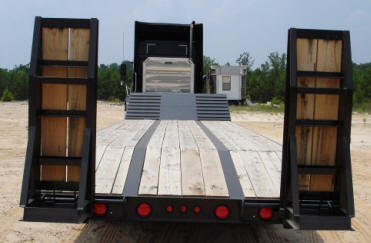

  • Ramps 8" channel 5' spring assist
  • Tires shown with 2-35/75r/17.5 18ply STD is 255/7R/22.5
  • Wheels STD 22.5 10 Lug
  • Painted and primed 2 coats each
Wide x Length Ft. Axles Brake Price
102 x 39' 22.5 k 2 $18368
102 x 39' 25 k 2 $18648
102 x 44'

Frame upgrade with 235 x 17.5 tires
16" @ 40lb main beam
6" @ 12lbs floor sills
10" @ 15.3 lb side rails
36" deck from ground

35 k 2 $25,088
102 x 44'

35k Same as above
Frame upgrade with 255 x 22.5 tires
16 1/2" brake and hubs
12 @ 20.7 lbs side rails
40" deck from ground

35 k 2 $26,488
